| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | SFZ9-35 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SET |
| Name: | Power Transformer Oil Type | Coil Structure: | TOROIDAL |
|---|---|---|---|
| Rated Capacity: | 30kva-5000kva | Vector Group: | Dyn11 / Yyn0 |
| Coil Number: | Other | Frequency: | 50/60Hz |
| Phase: | Three Phase | Certification: | ISO9001:2008 |
| High Light: | SFZ9 Three Phase Variable Transformer,30kva Distribution Transformer Parts,Oil Type Distribution Power Transformer |
||

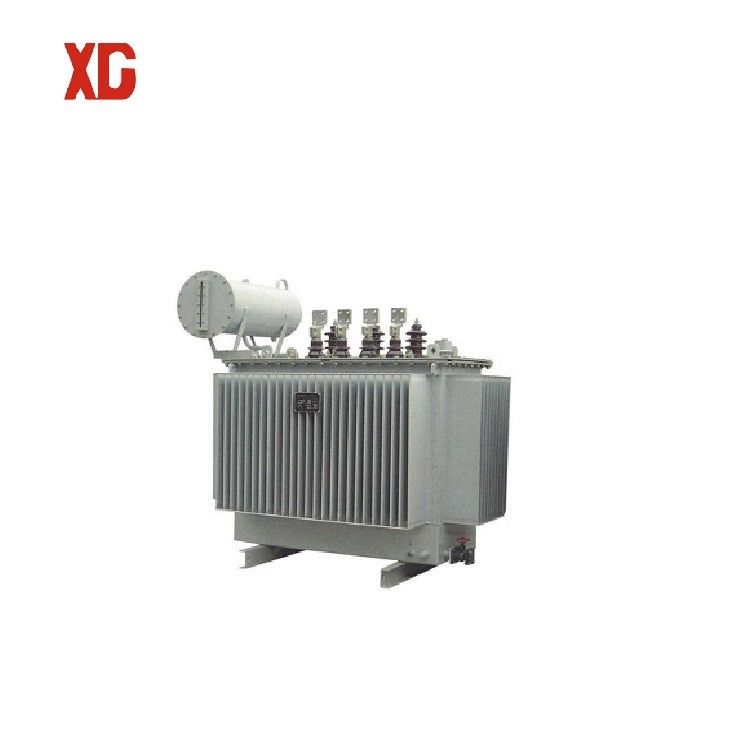

1. 33kv 35kv Oil Type Power Transformer Three Phase Dual Voltage
1. Strong environmental protection effect: The design magnetic flux density of transformer is lower .Its energy-saving and environmental protection effect is widely recognized.
2. The comprehensive use cost is low.
3. Stable operation and high safety performance.
2. Working condition 33kv 35kv Oil Type Power Transformer Three Phase Dual Voltage
3. Transformer Tank
a. The transformer does not include trolley
b. The welding parts should meet the specified of GB6451-1999;
c. The transformer includes fuel outlet valve.
4. Data
|
Rated Capacity
|
Voltage ratio
|
Vector group
|
no-load loss(KW)
|
impedance
|
|
10kva
|
400/380/220/110/12v
|
Dyn11/dyn5/Yyno/Ynd1
|
0.08
|
4%
|
|
50kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.13
|
4%
|
|
100kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.2
|
4%
|
|
200kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.34
|
4%
|
|
500kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.68
|
4%
|
|
1000kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
1.15
|
4.5%
|
|
1600kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
1.64
|
4.5%
|
|
2500kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
2.31
|
4.5%
|
|
10MVA
|
69kv/35kv/20kv/15kv/11kv
|
Dyn11/dyn5/Yyno/Ynd1
|
|
|
|
24MVA
|
220kv/110kv/69kv/35kv/11kv
|
Dyn11/dyn5/Yyno/Ynd1
|
|
|
|
100MVA
|
400kv/220kv/110kv/69kv/35kv
|
Dyn11/dyn5/Yyno/Ynd1
|
5.Packaging & delivery
Packaging Details:
Wooden Carton with per medium voltage transformer 50 kva transformer
Port:
Tianjin, Shanghai, Guangzhou,Qingdao,Ningbo,Shenzhen port
6. FAQ
1. All our activities are accredited to ISO 14001:2015 and IEC standard.
2. Technology ensure the quality satisfy international request.
3．Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
4. For tender cooperation, it is welcome to discuss the detail in between.
