| Place of Origin: | XIAN |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | FN12-12 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD200-1000 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 SETS |
| Medium: | Vacuum | Material: | Galvanized Sheet And Accessories |
|---|---|---|---|
| Function: | Switch On And Off Normal Load Current | Installation Location: | Power Plants, Substations And Power Systems Etc |
| Warranty: | 12 Months | Package: | Exporting Standard Package |
| MOQ: | 1set | Operation Type: | Electric Or Manual |
| Highlight: | 12kV Load Break Switch,630A Load Break Switch,12kV air load break switch |
||

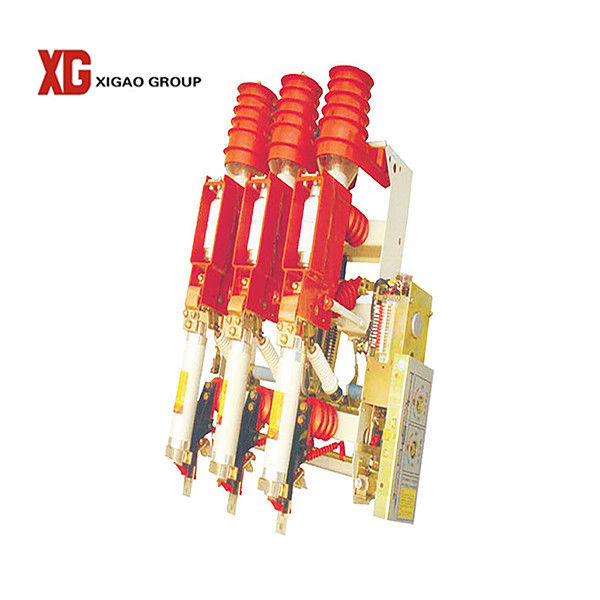

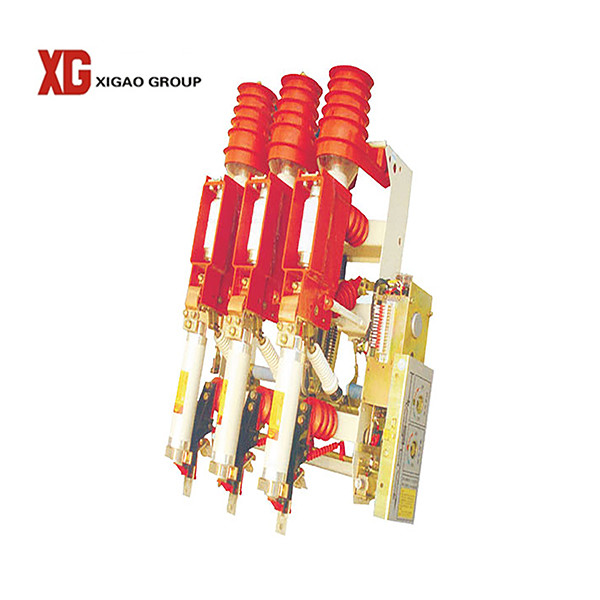

Air Insulated Load Break Switch Air Break Switch FN12-12
1.Introduction
It is a three phase H.V. switch equipment of 12KV, 50Hz for breaking or closing load current., no-load transformer cable charging current and closing short-circuit current. The load switch with earth switch can bear short-circuit current.
It is made up of FN12-12D load switch and S()LAJ-12(XRNT()-10) H.V. current-limiting fuse box. It can break any current, load switch breaking working current and fuse box breaking short-circuit current, jointly breaking any current between short-circuit current. Meantime, fuse box make the switch off of with the striker.
2.Technical Parmeter
| Number | Name | Unit | FN12-12D/630-20 | FN12-12D.R/100-31.5 |
| 1 | Rated voltage | kV | 12 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Reated current | A | 630 | 1000 |
| 4 | Lighting impulse resisting voltage | kV | 75/85 | |
| 5 | 1min power frequency with stand voltage | kV | 42/48 | |
| 6 | Rated heat - stability current | kA | 20(4S) | |
| 7 | Rated machine-stability current | kA | 50 | |
| 8 | Rated closing current (peak) | kA | 50 | |
| 9 | Rated short-circuit breaking current | kA | 31.5 | |
| 10 | Rated transfer current | kA | 1.5 | |
| 11 | Max. breaking current | kA | 1.8 | |
| 12 | Breaking no-load transformer capacity | Kva | 1250 | |
| 13 | Rated cable charging current | A | 10 | |
| 14 | Rated power load current breaking times | time | >100 | |
| 15 | Switch-off time of rated power load current switch on-and-off | S | >0.06 | |
| 16 | Earth switch heat-stability current | kA | 20(2S) | 20(2S) |
| 17 | Earth switch heat-stability curreak (peak) | kA | 50 | 50 |
| 18 | Motor operating power valtage | V |
AC220,DC48
|
|
3.Service Condition
1. The ambient air temperature: MAX.: +40°C, Min.: -10°C.
2. The altitude does not exceed 1000m.
3. The relatire humidity of air daily average ≤90%, monthly average ≤ 95%.
4. The ambient air should not be obviously polluted by corrosivity or the flammability gas and steam. etc.
5. The working situation without frequent violent.
4.Our Services:
1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
5.Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

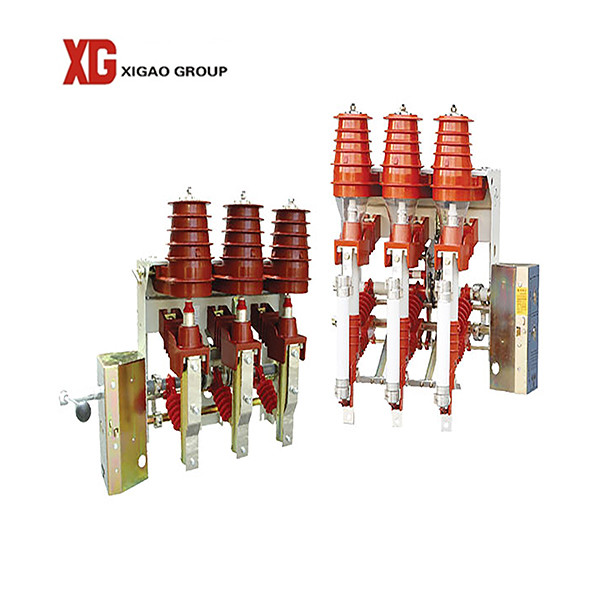

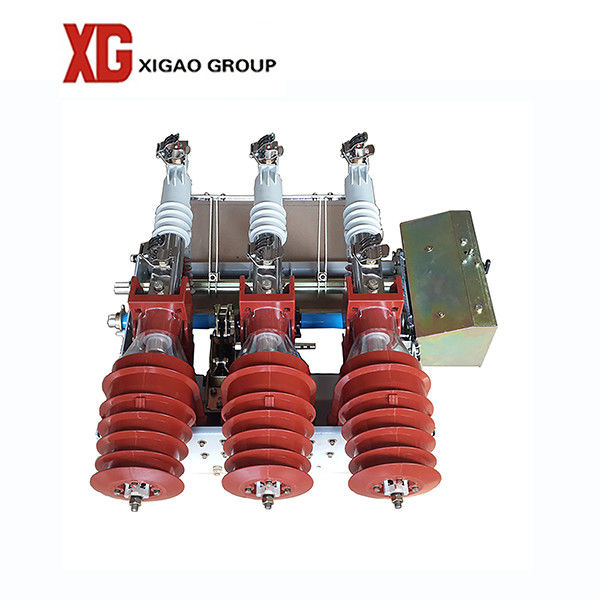

6.Product photo:
7.FAQ:
1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
