Detail Information

Rated Voltage:	7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV	Rated Current:	400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A
Frequency:	50/60Hz	Poles Number:	3
Phase:	3 Phase	Medium:	SF6
Material:	Galvanized Sheet And Accessories	Certificate:	ISO14001 BS OHSAS18001
High Light:	132kV SF6 Gas Breaker , LW36 SF6 Gas Breaker , SF6 132 kv circuit breaker

Product Description

LW36-132kV Outdoor SF6 circuit breaker manufacturer

Product Description

SF6 Circuit Breaker

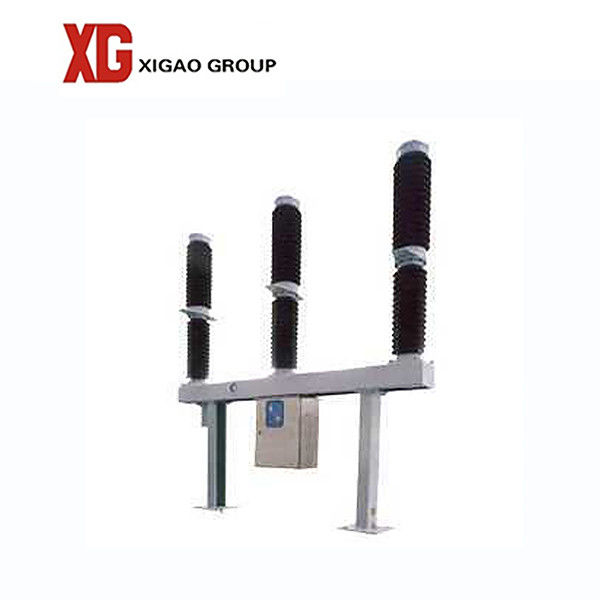

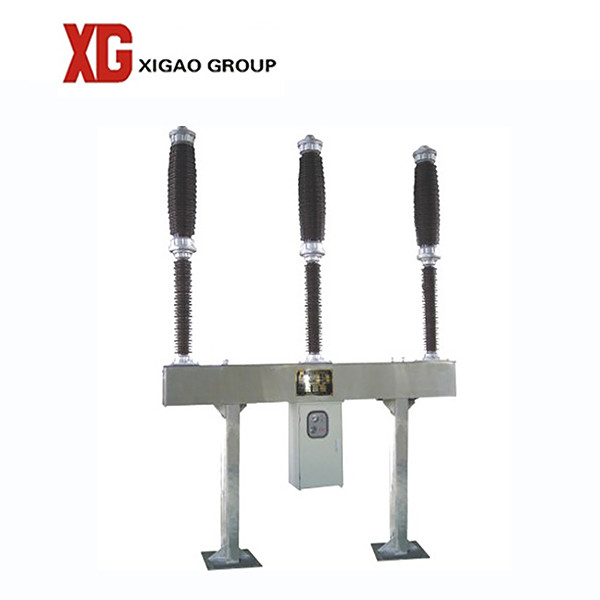

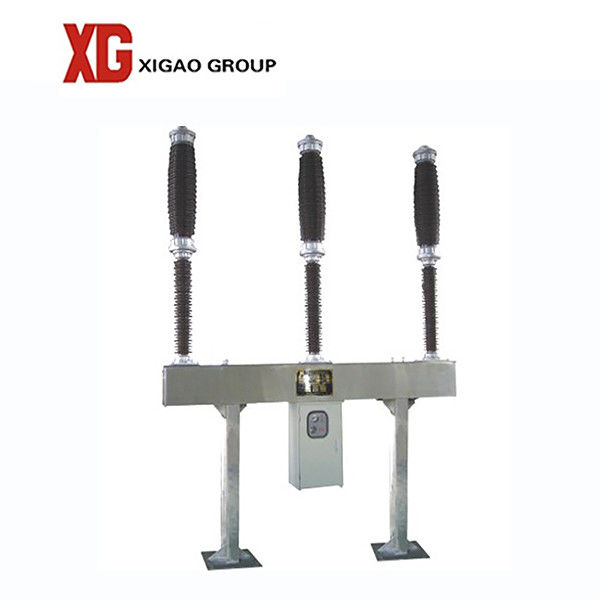

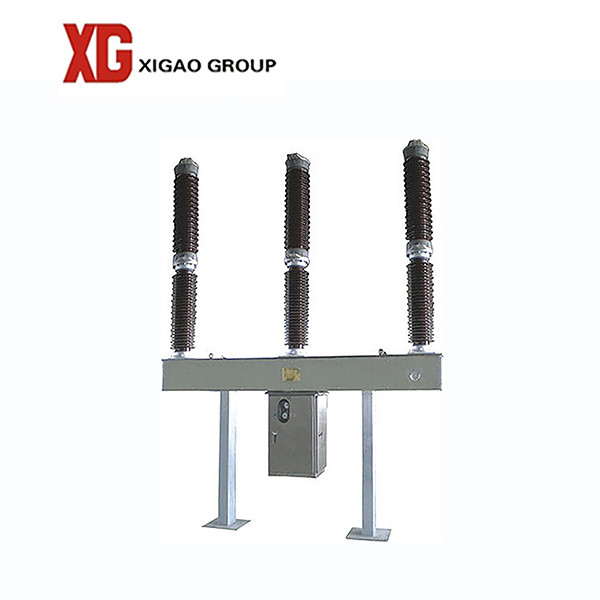

LW36-132 Outdoor SF6 Circuit Breaker

LW36-132kV Outdoor SF6 circuit breaker manufacturer

Drawings

LW36-132kV Outdoor SF6 circuit breaker manufacturer

1. Environmental Condition

Ambient temperature:-40℃~+40℃
Altitude:≤2000m
Wind pressure:≤700Pa
Daily temperature differenc:25℃
Icing thickness:≤10mm
Air pollution level:Ⅲ

2. Technical Data

No.	Item		Unit	Data
1	Rated voltage		KV	132
2	Rated current		A	3150
3	Rated frequency		HZ	50
4	First pole to clear factor			1.5
5	Rated short circuit breaking current		KA	40
6	Rated short-circuit current (peak)		KA	100
7	Rated short-circuit withstand current		KA	40
8	Rated power frequency withstand voltage(1min)	Phase to earth	KV	K·230
8	Rated power frequency withstand voltage(1min)	Phase to phase	KV	K·(230+70)
9	Rated lightning impulse withstand voltage	Phase to earth	KV	K·550
9	Rated lightning impulse withstand voltage	Phase to phase	KV	K·(550+103)
10	Rated peak withstand current		KA	100
11	Rated out of step current		KA	10
12	Near fault current		KA	90%1K
13	Electrical life of rated short circuit breaking current		times	20
14	Rated short circuit duration		s	4
15	Rated line charging close current		A	31.5
16	Rated operation sequence			O-0.3s-CO-180s-CO35
17	Main circuit resistance		μΩ	≤35
18	Rated SF6 gas pressure		MPa	0.6
19	SF6 gas leakage rate		ppm	≤0.55
20	Moisture content of SF6 gas (V/V)			≤150
21	Mechanical life		times	10000
22	Electric distance	Phase to earth	mm	3906/3150
22	Electric distance	Phase to phase	mm	3906/3150
23	Each filled with SF6 gas quality		kg	8
24	Quality of each circuit breaker		kg	1700

3. Application

Self-energy type SF6 circuit breaker LW36B-132 is outdoor unit which is developed by our company and Xi'an High Voltage Apparatus Research Institute with sulfur hexafluoride gas as insulation and arc extinguishing medium and principle of single variable pressure cabinet type arc extinguishing. The product is suitable for 126KV three-phase AC 50HZ power system, which is used for points and load current , overload current and short circuit current.

4.Standards

GB1984
GB/T28001-2011 idt OHSAS18001:2007
GB/T24001-2004 idt ISO14001:2004

5. Features

a) Reliable breaking performance

b) Reliable mechanical operating performance:high operational reliability, mechanical life up to more than 10000 time

c) Reliable insulation

d) Reliable sealing performance

e) Strict process of product components

Company Information

SF6 Circuit Breaker

SHORTEN DISTANCE WITH REAL MANUFACTURER

Certifications

ISO 9001:2008 & National CCC certification

XIGAO GROUP CERTIFICATES

Packaging & Shipping

SF6 Circuit Breaker

SAFE PACKAGING & FAST DELIVERY

FAQ

Frequently Asked Question

Are you manufacturer or trading company?

Xi'an XIGAO Group is a specialized manufacturer with over 20years production experience, and have our own

trade mark "XIGAO GROUP".

How to pay sample and express charges?
For samples charge, you could pay through West Union or Transfer to our company's account. If you have a

international express account, we could send samples to you by freight collected. Please kindly note we will

charge a reasonable cost of samples.

What is your terms of payment ?
We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance

against copy of B/L.

How do you control the quality ?
Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards,At

the same time ,we will take photos or shoot video for you.

What about lead or shipping time?
The lead time depends on the quantity you ordered, generally within 20-30 days upon receipt of advance payment.

Tag:

Place of Origin:	XIAN
Brand Name:	XG
Certification:	ISO,CCC
Model Number:	LW3

Minimum Order Quantity:	1 SETS
Price:	USD300-1000
Packaging Details:	WOODEN CASE
Delivery Time:	7-15 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 SETS

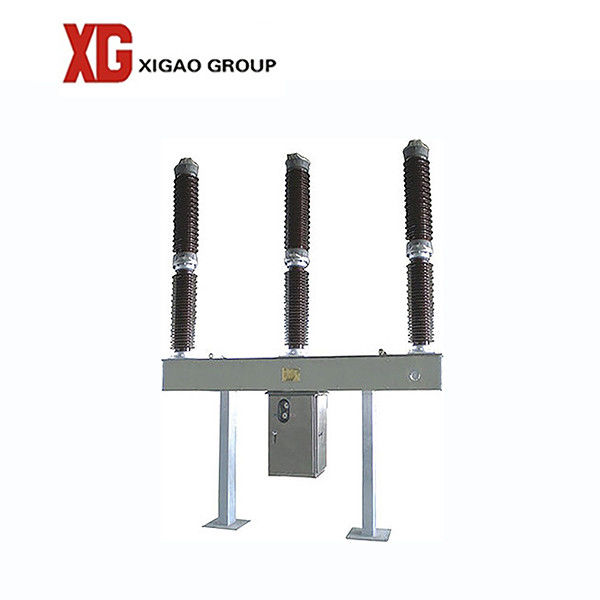

LW36-132kV Outdoor SF6 Gas Breaker In Substation 3 phase
